MURAL ROBOT(ArtBOT)
-
-
MURAL ROBOT(ArtBOT)
The world’s first exterior wall mural robot that draws images on the exterior walls of buildings, including apartments, buildings, retaining walls, and soundproof walls.
Features
-
-
Ultra-high resolution image
Direct mural printing of graphic images that are difficult to replicate by hand
-
-
Large-scale mural
Creation of large-scale murals using multi-division image painting technology
-
-
Automatic external condition recognition
Seamless output even on uneven surfaces such as curved or corrugate surfaces as well as flat surfaces
-
-
Unmanned remote control
Ensuring worker’s safety by controlling mural robots in high-rise buildings using automatic remote control technology

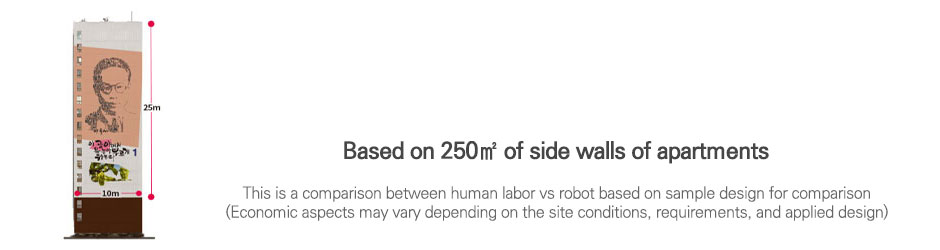

Human labor vs robots comparison
-
-
Manual labor
Manpower : 3 people
Period : 20 days
Cost : 32,000,000 won
Work method : Rope, crane manual work
Delays in construction time/ risks/ increased construction costs/ problems in securing labors/ differences in construction quality
-
-
ArtBOT
Manpower : 3 people
Period : 4 days
Cost : 23,180,000 won
Work method : Mural painting robot work
Reduced construction time/ reduced construction cost/ safe operation/ realistic representation/ consistent construction quality
Mural robot’s applied technology
| 1) 3-Axis printing head | – The ArtBOT controls print head with 3-axis, allowing it to be printed on normal wall where paint surface is not uniform. |
|---|---|
| 2) Remote control | – The ArtBOT can be controlled on-site via a PC, and it also offers remote control capabilities through smart devices when needed. |
| 3) Implementation of ultra-high resolution images | – Consistent work is possible within a tolerance range of 1mm (Implementation of precise standardization of position and repetitive accuracy). |
| 4) Implementation of primary colour images | – Adjust the amount of spray in 4 colours (CMYK) paints to achieve vivid colour. |
| 5) Multi-division painting | – With the multi-division painting technology, it is possible to paint images of any size. |
