ROAD MARKING PAINTING ROBOT(R-BOT)

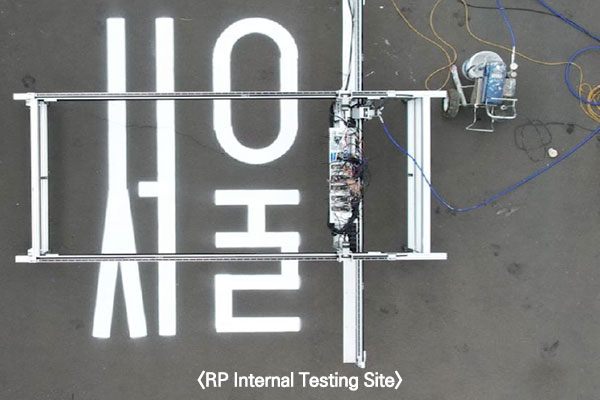

Road marking robot(R-BOT)

Road marking robot(R-BOT) is a robot which autonomously and remotely paints road markings, symbols, and signs on highways, local roads, and in front of school zones.

By automating the risky road marking construction, which was previously done 100% manually, RP ensures the safety of workers and achieve a reduction in working time by more than 70% compared to manual labor.

Furthermore, RP can guarantee consistent paint quality and standardized road marking outcomes.

Problems of road marking construction

100% manual labor

Workers on hazardous roads are performing 100% manual

Worker’s traffic accident

Out of 170 traffic accidents that occurred during the past 5 years on highways, there were 50 fatalities

Explosion of a heating device

Continuous exposure to the risk of explosion due to the presence of LPG gas tanks and heating devices for thermoplastic paintings

Non-standardization

Results of road markings that vary according to worker’s proficiency and method




Features

  • Safety

  • Affordability

  • Standardization

  • High quality

  • Eco-friendliness

Safety

Accomplishment of 0% manual operation through unmanned automation

Affordability

78% reduction in working time compared to manual labor and cost savings in materials such as paint

Standardization

Providing standardized road markings in accordance with the standard specifications
Preparing for the era of autonomous driving vehicles

High quality

Ensuring uniform painting thickness and high-quality construction

Eco-friendliness

Reduction of harmful gases and airborne dust compared to thermoplastic painting through the use of room temperature curing painting




Road marking robot technology

노면표시 도장로봇 기술
1) Natural language automatic coordinate conversion algorithm technology - Automatic conversion of characters into standardized character coordinates for road marking work.
- Various fonts such as those used on highways and local roads can be digitized and stored in a database for use.
2) Algorithm for coordinate transformation based on inclination - Automatic correction of road markings by transforming the angle of deviation or offset distance between the robot and the lane into coordinates.
3) High-precision work technology for road marking standardization - It is capable of performing consistent operations with a tolerance of within 1mm(achieving high-precision standardization of positioning and repetitive accuracy).
4) 5-axis synchronized movement technology - Painting speed and font thickness adjustment technology, capable of adapting to changes in road marking width and height (circular character display).
5) Automatic bead spraying technology - Uniform automatic bead spraying technology along the painting path.
6) Unmanned operation using remote control technology - Remote control technology enables workers to operate in vehicles other than hazardous roads (reducing personnel accidents).



Features of software

소프트웨어 특징
- Language C#, Json, .Net Framework 4.6.1
- Development tool Visual Studio 2022

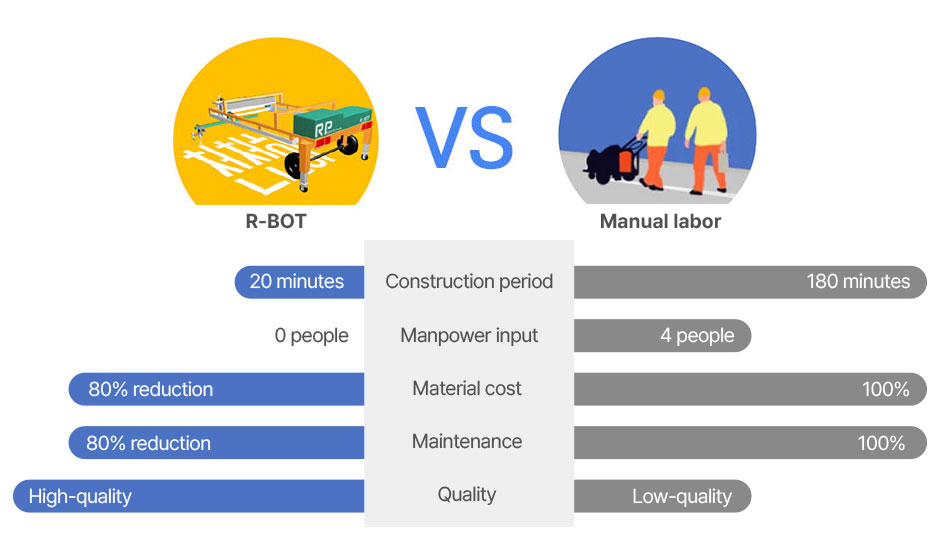

Human labor vs robots comparison

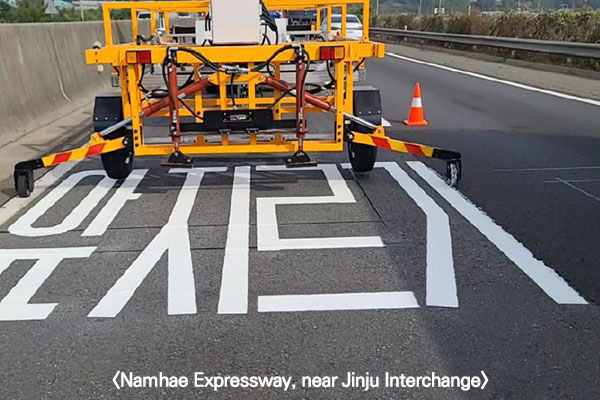

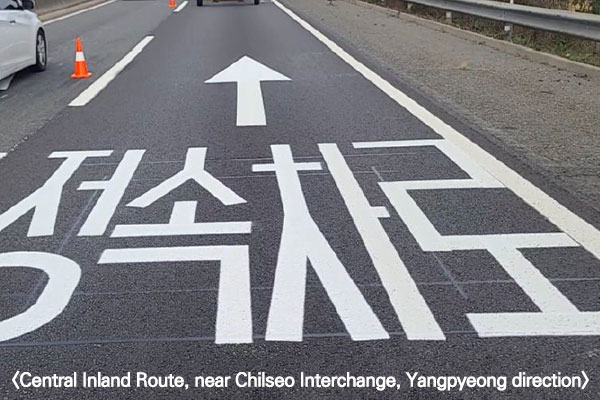

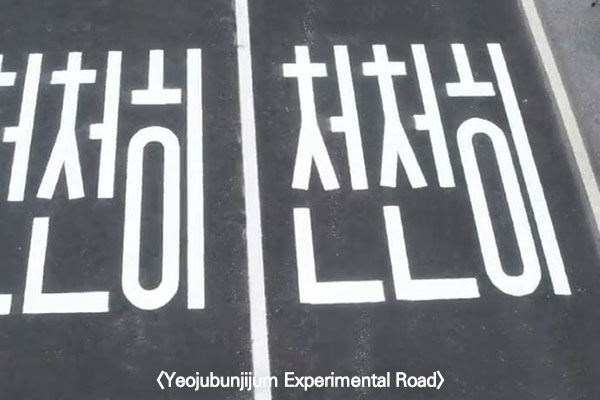

Construction case
